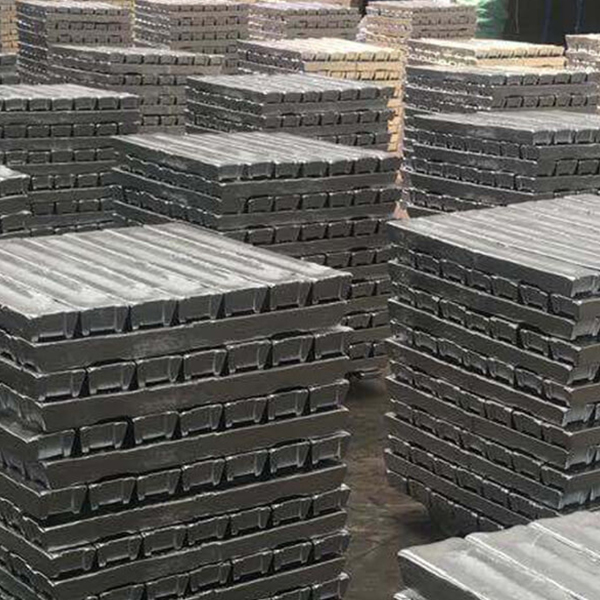

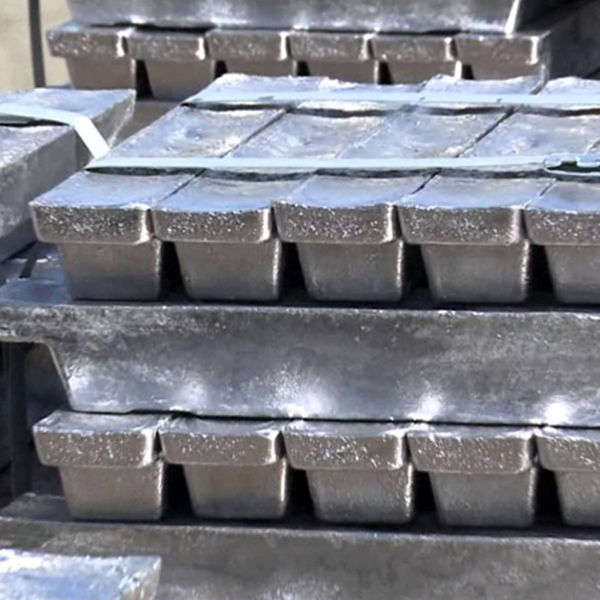

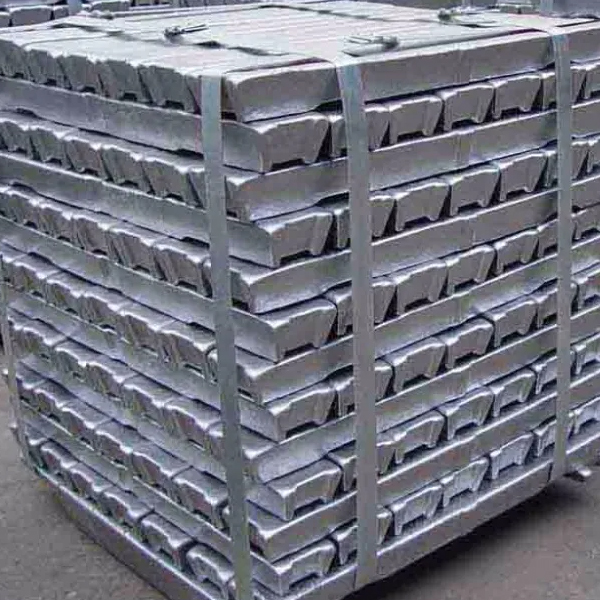

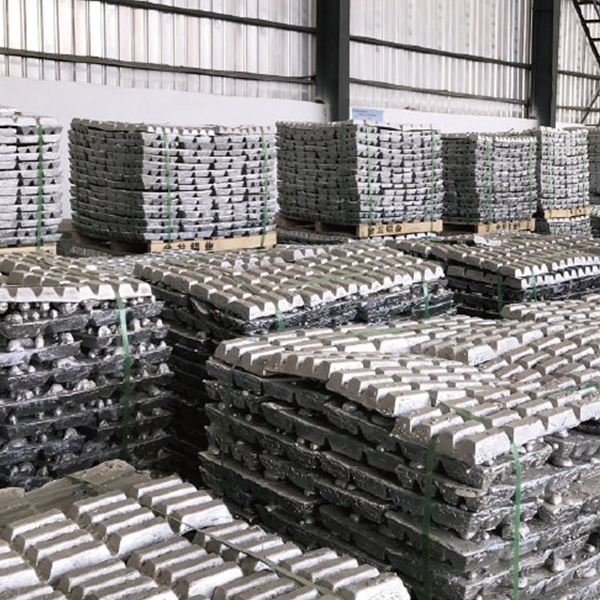

Aluminium Alloys Ingot

Our Company is playing aggressive Role in Supplying Wide Range of Aluminium Alloys Ingot to our customers which is produced by utilizing the best quality aluminium Scraps. These aluminium Alloys ingot are acknowledged for incredible protection from changing temperature and improved tough completion measures. These are offered by us in various particulars to meet the fluctuated necessities of our customers. Followings are the different grades of Aluminium alloys ingot we offer to our customer

JIS – Chemical Composition (% By Weight)

Alloy	Cu	Si	Mg	Zn	Fe	Mn	Cr	Ni	Sn	Pb	Ti	Al
ADC1	1.0 max	11.0 to 13.0	0.3 max	0.5 max	1.3 max	0.3 max	–	0.5 max	0.1 max	0.20 max	0.30 max	Balance
ADC3	0.6 max	9.0 to 11.0	0.4 to 0.6	0.5 max	1.3 max	0.3 max	-	0.5 max	0.1 max	0.15 max	0.30 max	Balance
ADC5	0.2 max	0.3 max	4.0 to 8.5	0.1 max	1.8 max	0.3 max	-	0.1 max	0.1 max	0.1 max	0.20 max	Balance
ADC6	0.1 max	1.0 max	2.5 to 4.0	0.4 max	0.8 max	0.4 to 0.6	-	0.1 max	0.1 max	0.1 max	0.20 max	Balance
ADC10	2.0 to 4.0	7.5 to 9.5	0.3 max	1.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC10Z	2.0 to 4.0	7.5 to 9.5	0.3 max	3.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC12	1.5 to 3.5	9.6 to 12.0	0.3 max	1.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC12Z	1.5 to 3.5	9.6 to 12.0	0.3 max	3.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC14	4.0 to 5.0	16.0 to 18.0	0.45 to 0.65	1.5 max	1.3 max	0.5 max	-	0.3 max	0.3 max	0.20 max	0.30 max	Balance
AC4B	2.0 to 4.0	7.0 to 10.0	0.5 max	1.0 max	0.8 max	0.5 max	0.20 max	0.35 max	0.10 max	0.20 max	0.20 max	Balance
AC2B	2.0 to 4.0	5.0 to 7.0	0.5 max	1.0 max	0.8 max	0.5 max	0.20 max	0.35 max	0.10 max	0.20 max	0.20 max	Balance
AlSi9Mg	0.03 max	9.0 to 10.0	0.30 to 0.45	0.07 max	0.15 max	0.10 max	-	-	-	-	0.15 max	Balance
AlSi10Mg	0.08 max	9.0 to 11.0	0.25 to 0.45	0.10 max	0.45 max	0.45 max	-	0.05 max	0.05 max	0.05 max	0.15 max	Balance
AlSi9Cu1Mg	0.8 to 1.3	8.3 to 9.7	0.30 to 0.65	0.80 max	0.7 max	0.15 to 0.55	-	0.20 max	0.10 max	0.10 max	0.10 to 0.18	Balance
AlSi9Cu3(Fe)	2.0 to 4.0	8.0 to 11.0	0.05 to 0.55	3.0 max	1.3 max	0.55 max	0.15 max	0.55 max	0.25 max	0.35 max	0.25 max	Balance
AlSi12Cu1(Fe)	0.7 to 1.2	10.5 to 13.5	0.35 max	0.55 max	1.3 max	0.55 max	0.10 max	0.30 max	0.10 max	0.20 max	0.20 max	Balance

BS – Chemical Composition (% By Weight)

Alloy	Cu	Mg	Si	Fe	Mn	Ni	Zn	Pb	Sn	Ti	Al
LM0	0.03	0.03	0.3	0.4	0.03	0.03	0.07	0.03	0.03	-	Balance
LM2	0.7-2.5	0.3	9.0-11.5	1.0	0.5	0.5	2.0	0.3	0.2	0.2	Balance
LM4	2.0-4.0	0.2	4.0-6.0	0.8	0.2-0.6	0.3	0.5	0.1	0.1	0.2	Balance
LM5	0.1	3.0-6.0	0.3	0.6	0.3-0.7	0.1	0.1	0.05	0.05	0.2	Balance
LM6	0.1	0.1	10.0-13.0	0.6	0.5	0.1	0.1	0.1	0.05	0.2	Balance
LM9	0.2	0.2-0.6	10.0-13.0	0.6	0.3-0.7	0.1	0.1	0.1	0.05	0.2	Balance
LM12	9.0-11.0	0.2-0.4	2.5	1.0	0.6	0.5	0.8	0.1	0.1	0.2	Balance
LM13	0.7-1.5	0.8-1.5	10.0-13.0	1.0	0.5	1.5	0.5	0.1	0.1	0.2	Balance
LM14	3.5 – 4.5	1.2 – 1.7	0.6	0.6	0.6	1.8 – 2.3	0.1	0.05	0.05	0.2	Balance
LM15	0.3 – 3.0	0.5 – 1.7	0.6 – 2.0	0.8 – 1.4	0.1	0.5 – 2.0	0.1	0.05	0.05	0.05 – 0.3	Balance
LM16	1.0-1.5	0.4-0.6	4.5-5.5	0.6	0.5	0.25	0.1	0.1	0.05	0.2	Balance
LM20	0.4	0.2	10.0 – 13.0	1.0	0.5	0.1	0.2	0.1	0.1	0.2	Balance
LM21	3.0 – 5.0	0.1 – 0.3	5.0 – 7.0	1.0	0.2 – 0.6	0.3	2	0.2	0.1	0.2	Balance
LM22	2.8 – 3.8	0.05	4.0 – 6.0	0.6	0.2 – 0.6	0.15	0.15	0.1	0.05	0.2	Balance
LM24	3.0 – 4.0	0.3	7.5 – 9.5	1.3	0.5	0.5	3.0	0.3	0.2	0.2	Balance
LM25	0.2	0.2 – 0.6	6.5 – 7.5	0.5	0.3	0.1	0.1	0.1	0.05	0.2	Balance
LM26	2.0 – 4.0	0.5 – 1.5	8.5 – 10.5	1.2	0.5	1.0	1.0	0.2	0.1	0.2	Balance
LM27	1.5 – 2.5	0.35	6.0 – 8.0	0.8	0.2 – 0.6	0.3	1.0	0.2	0.1	0.2	Balance
LM28	1.3 – 1.8	0.8 – 1.5	17 – 20	0.7	0.6	0.8 – 1.5	0.2	0.1	0.1	0.2	Balance
LM29	0.8 – 1.3	0.8 – 1.3	22 – 25	0.7	0.6	0.8 – 1.3	0.2	0.1	0.1	0.2	Balance
